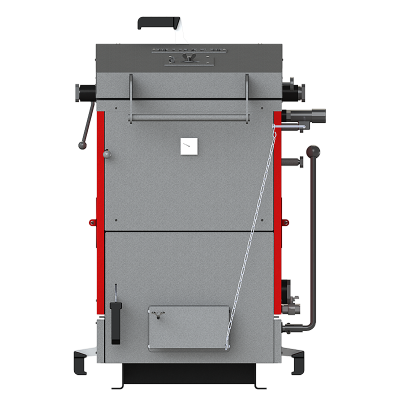

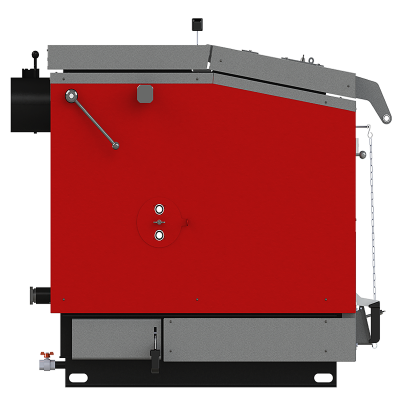

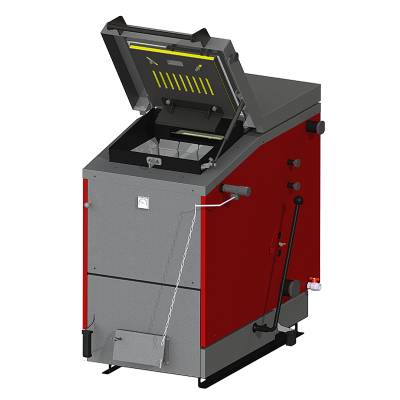

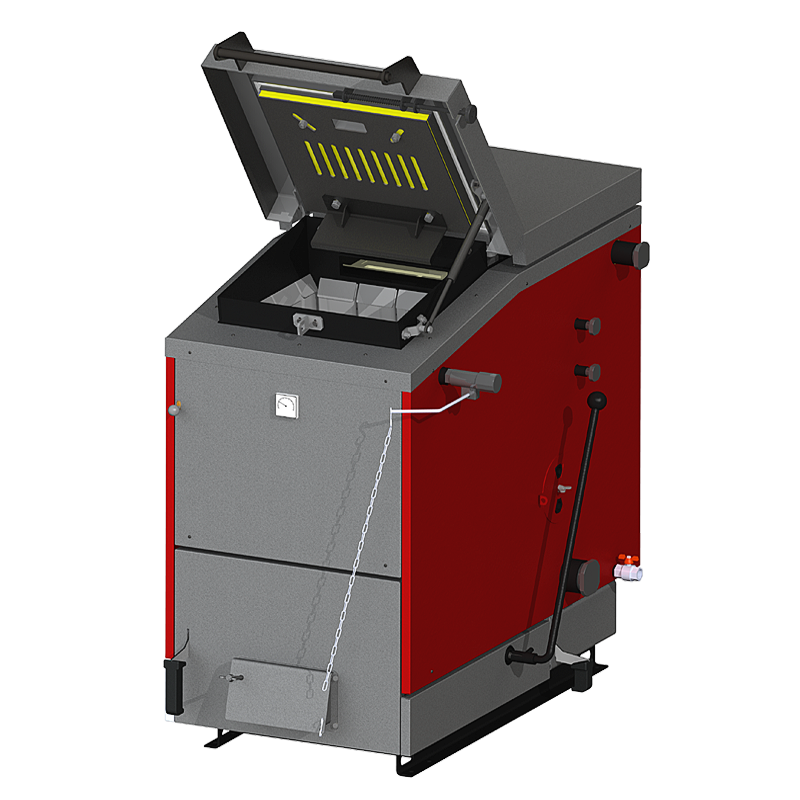

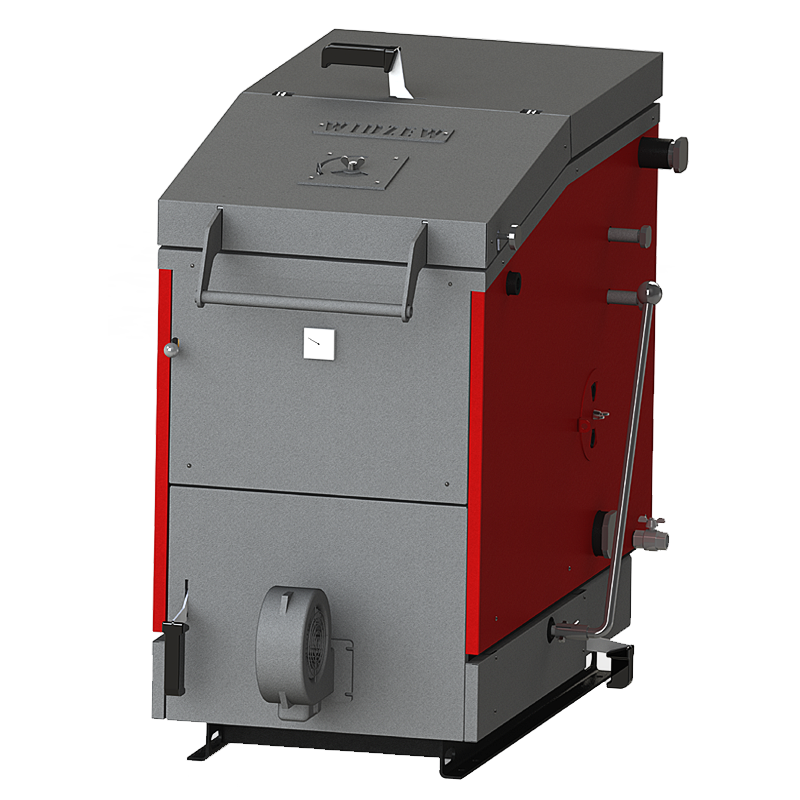

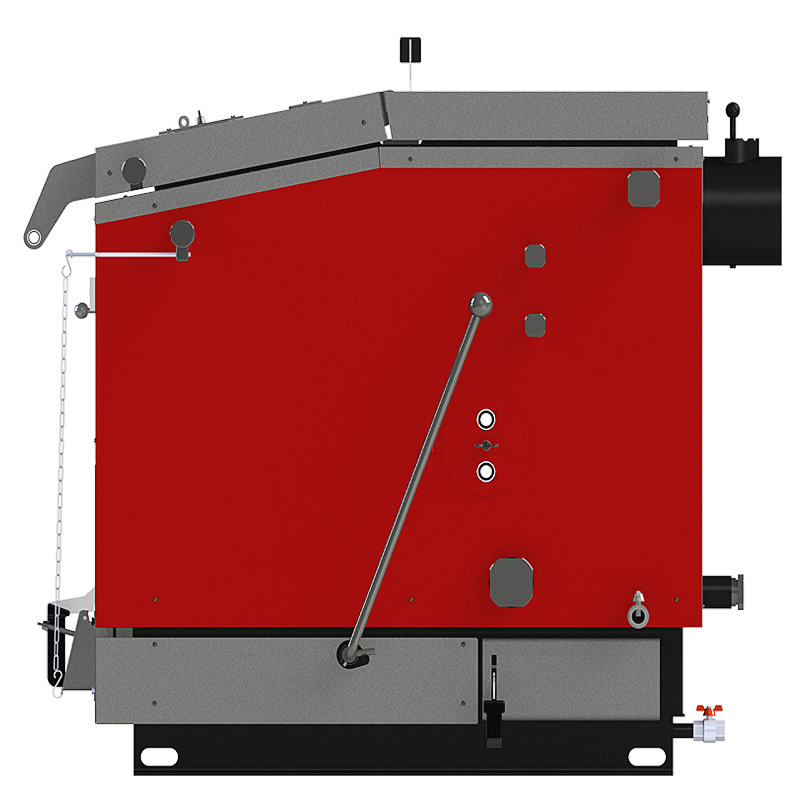

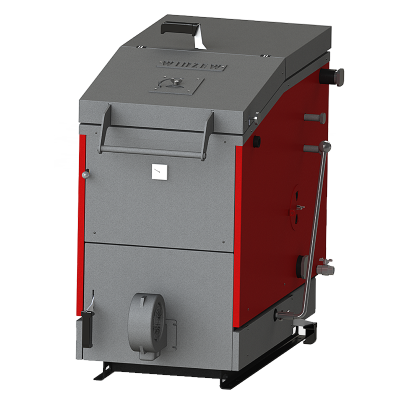

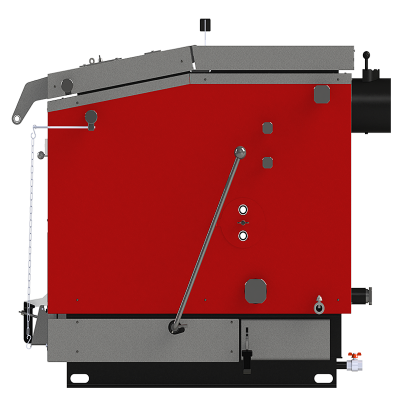

Bottom combustion solid fuel boiler KSh-Profi series 12-20 kW

ADVANTAGES OF THE BOILERS OF THE "KSH-PROFI" SERIES:

- Double thermal insulation of all boiler doors;

- The presence of a steel boiler shaft cladding:   - neutralizes the negative impact of the cold coolant (water) on the combustion process, promotes more complete combustion of fuel and, accordingly increases the efficiency of the boiler,

                                                                                - is an optimal solution when using various types of fuel, additionally protects the steel walls of the boiler from condensate;

- Availability of a grate shake-off mechanism;

- The presence of an automatic valve for removing smoke from the boiler shaft when opening the upper door;

- The presence of mechanical regulation of the thermal power (by changing the area of ​​the grate) of the boiler - makes it possible to operate without reducing the efficiency of the boiler at lower capacities (during the off-season and warm winters), unlike boilers without this option, in which the efficiency in a similar situation is significantly reduced;

- The pyrolysis gas afterburning chamber is completely lined with firebrick - promotes more complete combustion of fuel and obtaining a higher temperature of flue gases;

- The handle for adjusting the direct draft valve of the boiler is located on the front wall of the boiler for convenience;

- The presence of an additional air damper on the upper door of the boiler - when using fuel (wood) with high humidity;

- The ability to install heating elements on all boilers, i.e. the boiler can operate as an electric boiler;

- The presence of a second circuit for obtaining hot water is an - option;

- The ability to operate the boiler without electricity;

- Availability of a vertical heat pipe heat exchanger with turbulizers;

- The presence of a mechanism for cleaning the heat pipe heat exchanger;

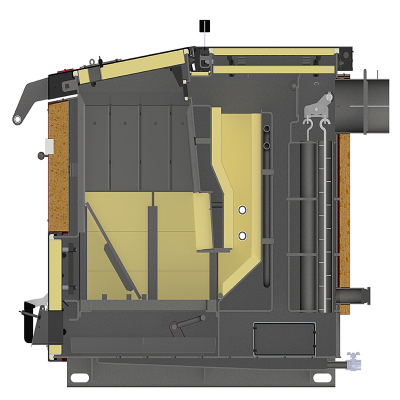

- The combustion zone in the boiler shaft is lined with refractory bricks - it contributes to the complete combustion of the fuel and accordingly increases the efficiency of the boiler;

- Warranty - 5 years;

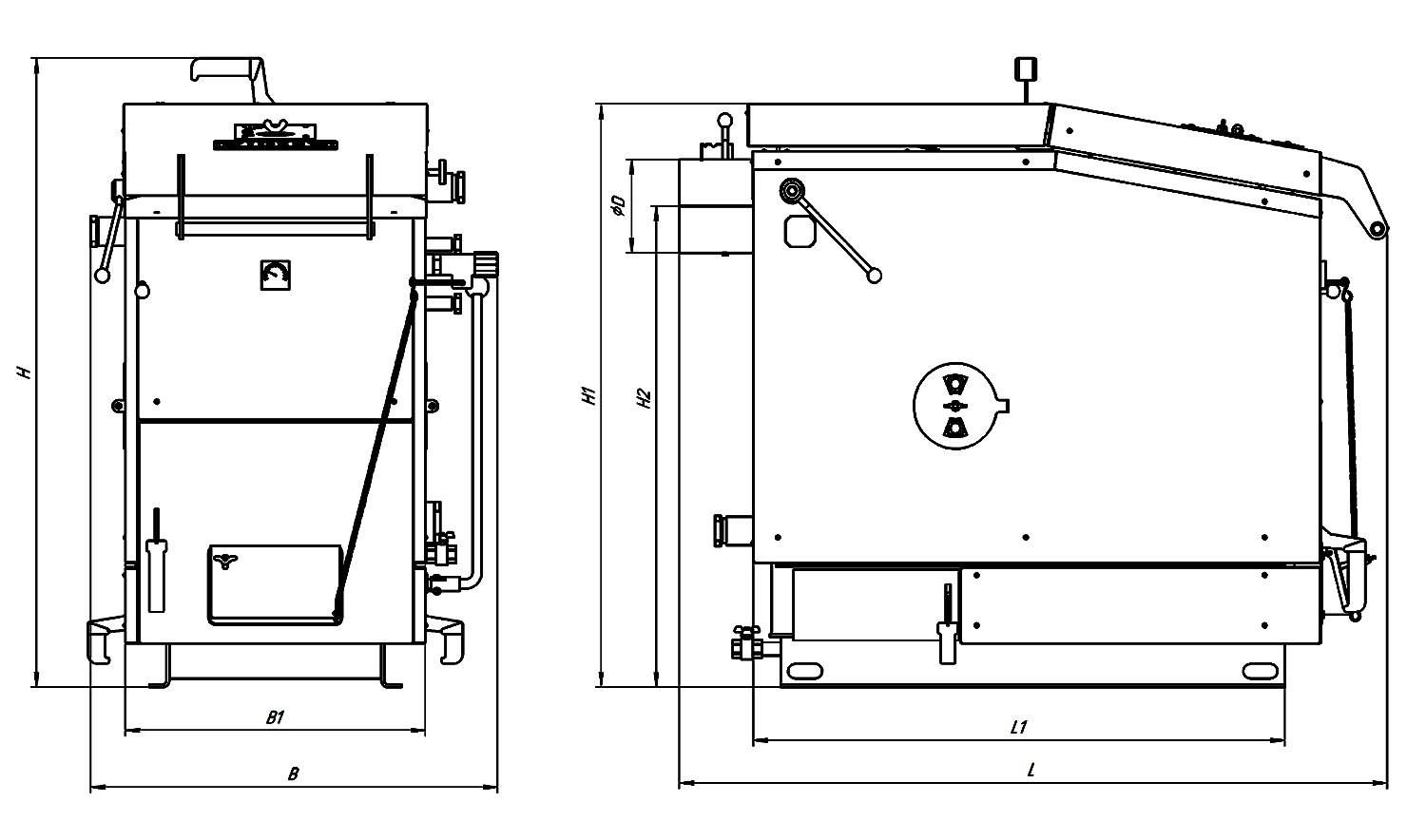

 OVERALL DIMENSIONS OF HEATING BOILERS  SERIES "KSH Profi"
