Solid fuel boilers of the "KD 12-20" series
Solid fuel boilers of long burning series "KD"
Free shipping
We offer free delivery throughout Ukraine.
Price from the manufacturer
Widzew is a manufacturing plant in Ukraine.
Price: 49 000 грн
Specifications

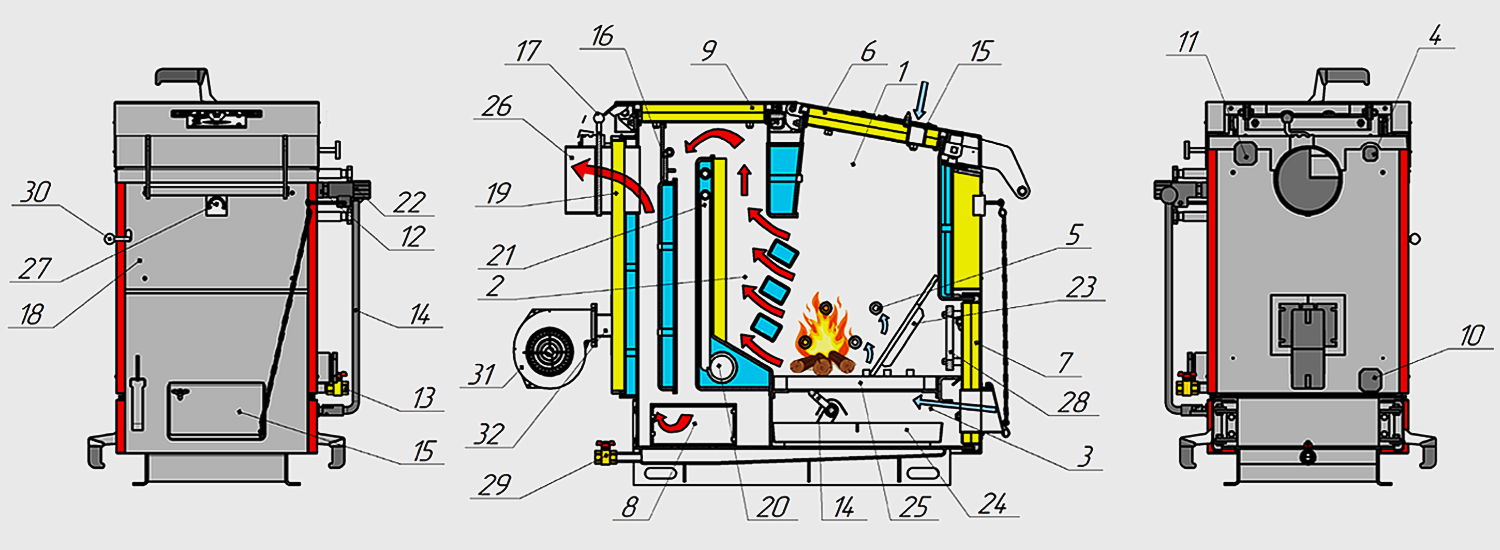

Key Specifications: Solid fuel boilers of the "KD 12-20" series

| 1. Combustion chamber No.1 with a shaft (furnace) | 17. Chimney flap (gas pipe) |
| 2. Combustion chamber No.2 (afterburning of combustion products with secondary air) | 18. Decorative casing |
| 3. The camera blew with an ashtray | 19. Thermal insulation |
| 4. Safety valve branch pipe |
20. Installation location of the heating element |
| 5. Secondary air inlet | 21. Second flowing water heating circuit (boiler emergency cooling coil) - option |
| 6. Loading hatch, shaft | 22. Mechanical thrust regulator |
| 7. Hatch for ash removal and access to the combustion zone | 23. Boiler power adjustment damper |
| 8. Soot removal hatch | 24. Ash box |
| 9. Hatch for cleaning smoke (gas) channels | 25. Grate |
| 10. Heat carrier supply pipe (water) | 26. Chimney (gas pipe) |
| 11. Return pipe for coolant supply | 27. Thermometer |
| 12. Mechanical thrust regulator pipe | 28. Ash grate |
| 13. Heat carrier drain pipe | 29. Condensate drain valve |
| 14. Grate shaking mechanism | 30. Direct-thrust valve control handle |
| 15. Primary air damper | 31. Blower fan (optional) |
| 16. Direct-flow flue gas valve | 32. Secondary air supply channel |
