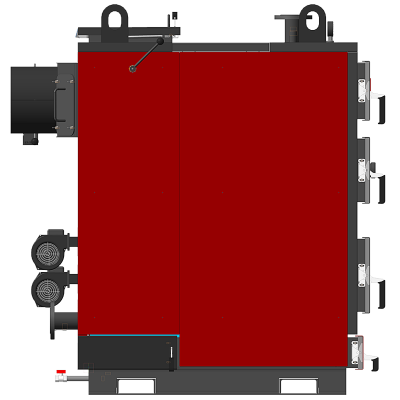

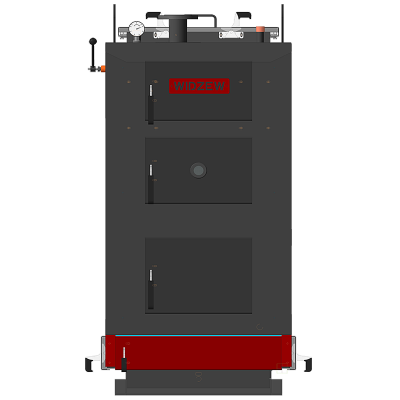

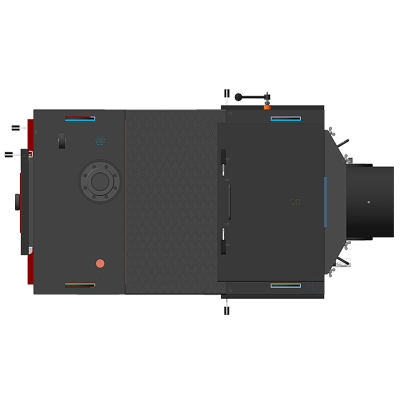

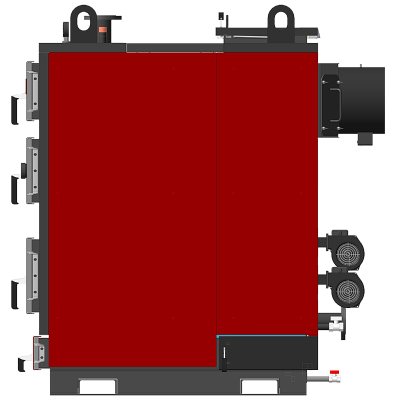

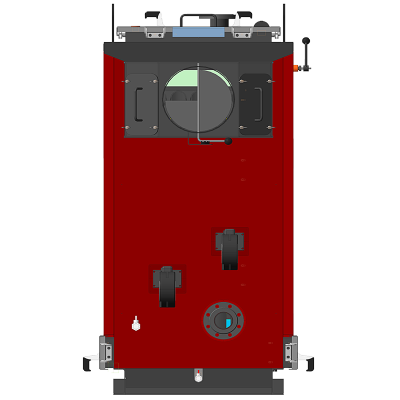

Industrial solid fuel boiler KP 150 kW

Industrial solid fuel boilers of the "KP" series from the manufacturer
Industrial solid fuel boiler KP 150 kW
Are available
Ship today
Article: WD20-97
Heating Area: 1500 m2
Mass: 1800 kg.
Specifications
Free shipping
We offer free delivery throughout Ukraine.
Price from the manufacturer
Widzew is a manufacturing plant in Ukraine.
Price: 214 000 грн
Free consultation

Specifications

Key Specifications: Industrial solid fuel boiler KP 150 kW
Parameters Unit of measure KP 150 KW
Nominal boiler power kw 150
Approximate heating area m2  1500
Used fuel   Wood, coal, briquettes
Coefficient of efficiency (nominal), not less % 86
Heat exchange surface area m2 13,7
  FIREPLACE PARAMETERS
 Depth mm  900
 Width  mm 750
 Volume dm3  641
Boiler water capacity l 480
Boiler weight without water Kg 1800
Required flue gas draft Pа  20÷40
Flue gas temperature at the boiler outlet °C  100÷170
Recommended minimum water temperature °C  57
Maximum water temperature °C  90
Nominal working water pressure MPа  0,2
Maximum working water pressure, no more MPа  0,3
 Test water pressure, not less than MPа   0,4
Electricity consumption, no more W  2х160
FIREPLACE DOOR DIMENSIONS
 Height  mm  370
Width mm 430
Diameter of the direct and return network water pipes (DN) mm 80
Diameter of the pipes under the safety valve (DN) mm 25
Connecting outer diameter of the drill bit mm 348
RECOMMENDED CHIMNEY PARAMETERS
Cross-sectional area cm2  961
Inner diameter mm  350
Height (minimum permissible) mm  9÷10

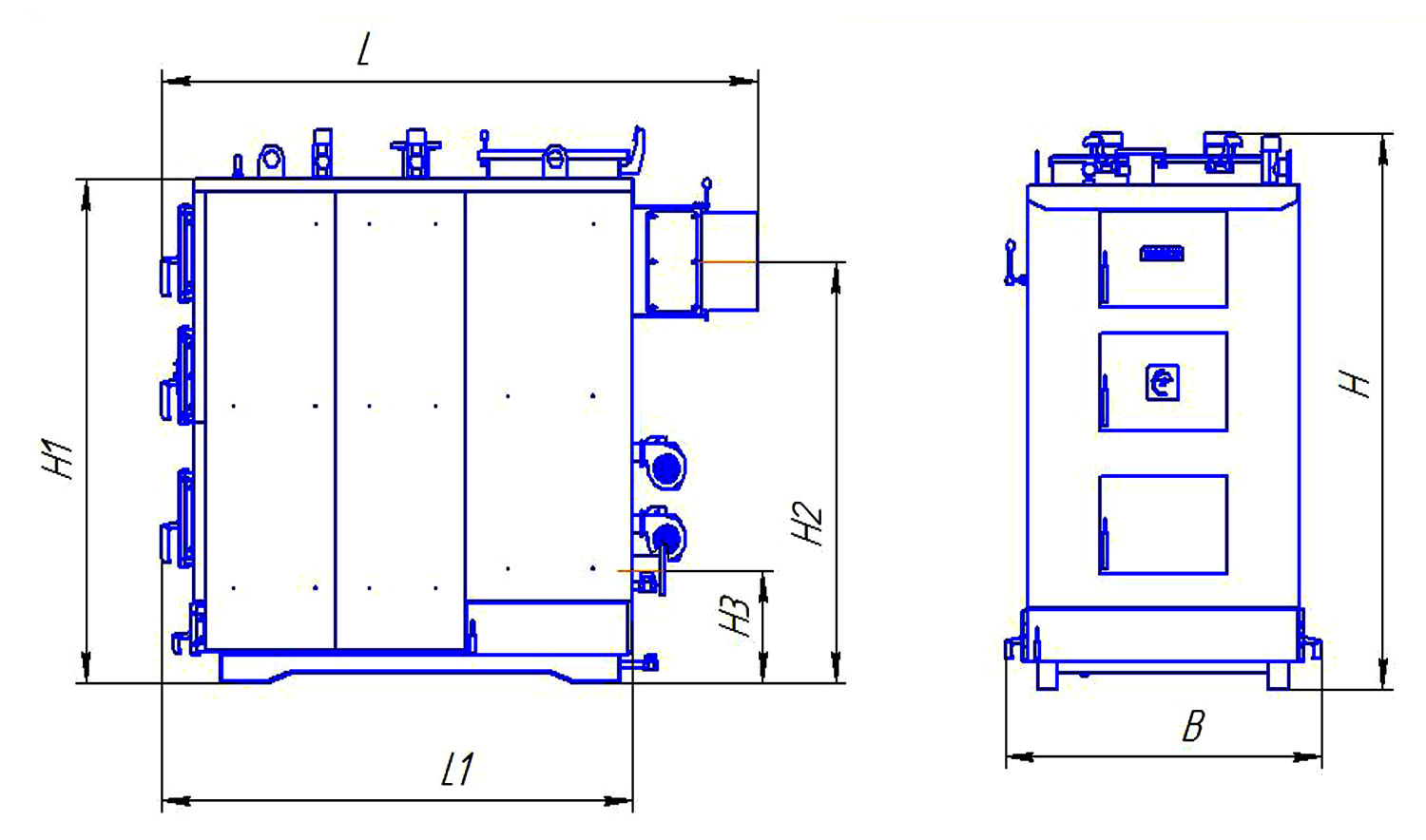

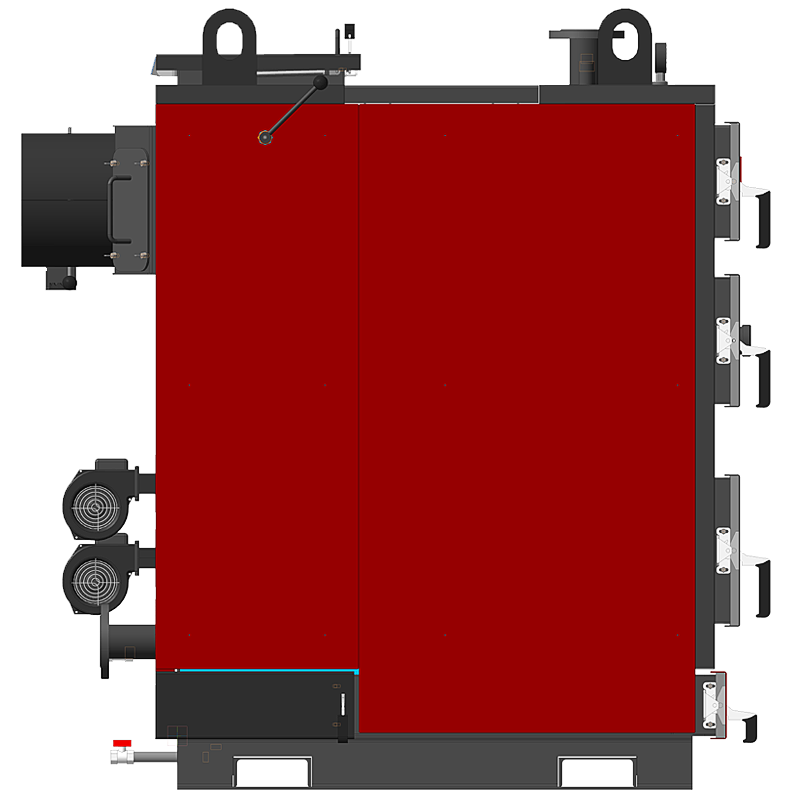

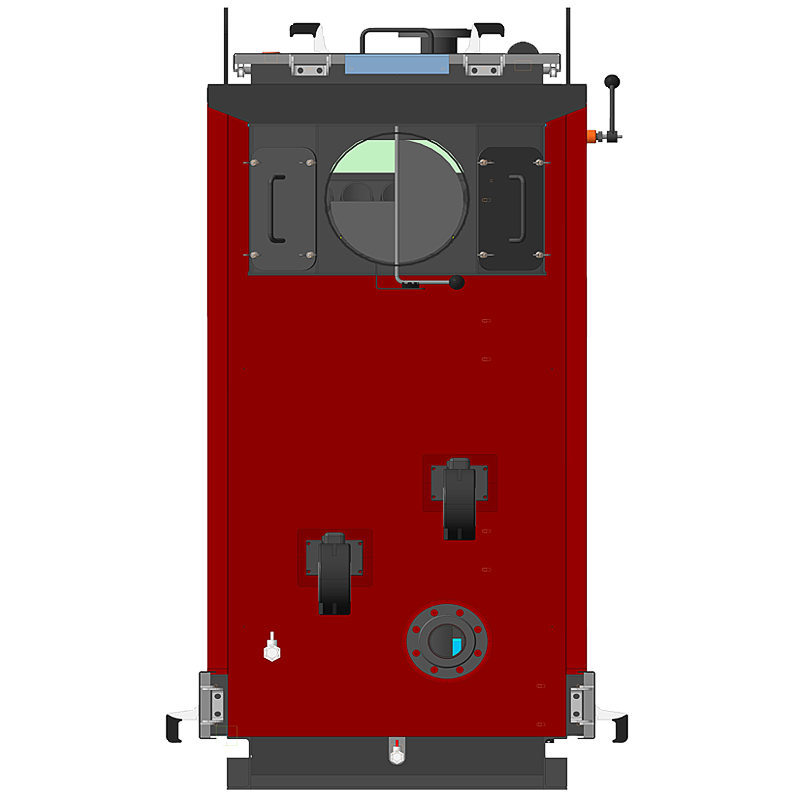

OVERALL DIMENSIONS OF THE KP 150 KW BOILER

Dimensions Unit of measure KP 150 KW
H mm 2020
H1 mm 1795
H2 mm 1487
H3 mm 385
L mm 1934
L1 mm 1522
B mm 1170

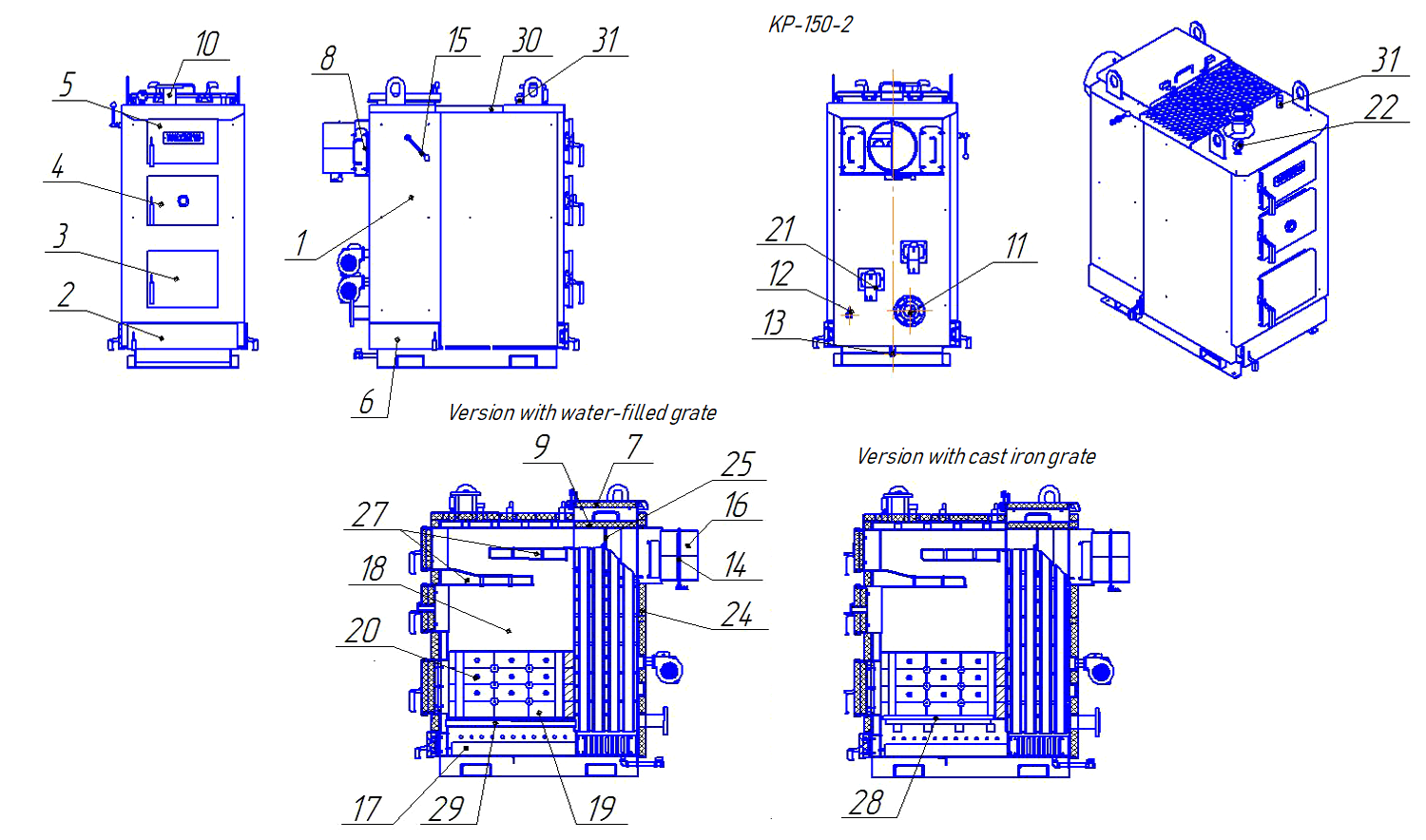

1. Boiler body 18. Furnace
2. Ash chamber door 19. Lining
3. Firebox door 20. Air supply nozzle
4. Loading door with inspection window 21. Fan
5-8. Cleaning door  22. Thermomanometer
9. Cleaning cover 23. Safety valve branch pipe
10. Heat carrier supply pipe 24. Thermal insulation
11. Heat carrier circulation (return) pipe 25. Smoke exhaust valve when opening the door
12. Coolant drain pipe 26. Fire tube heat exchanger
13. Condensate drain pipe from the chimney 27. Plate heat exchanger
14. Thrust regulator 28. Cast iron grate
15. Smoke exhaust valve handle when opening the loading door 29. Water-filled grate
16. Chimney 30. Process pipe
17. Ash tray
