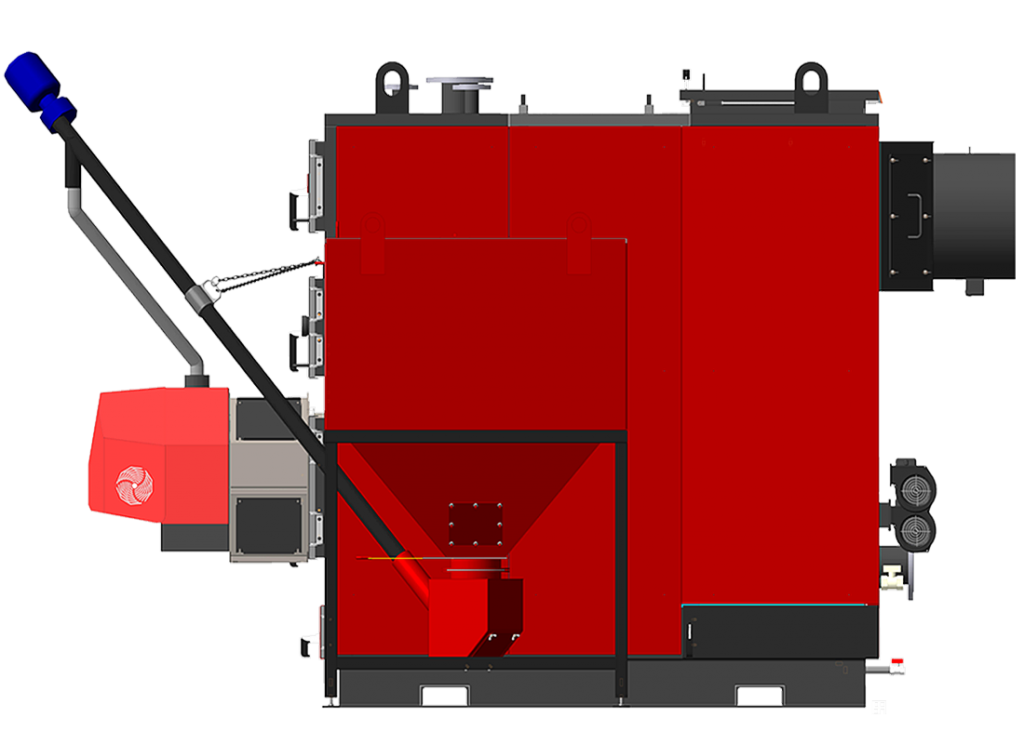

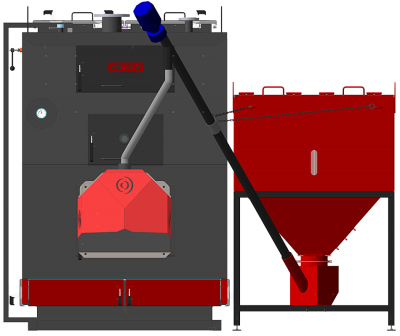

Industrial boiler KP 500 kW with automatic fuel feed

Industrial solid fuel boilers of the "KP" series with automatic fuel supply
Are available
Ship today
Article: WD20-131
Heating Area: 5000 m2
Mass: 4040 kg.
Free shipping
We offer free delivery throughout Ukraine.
Price from the manufacturer
Widzew is a manufacturing plant in Ukraine.
Price:

Specifications

Key Specifications: Industrial boiler KP 500 kW with automatic fuel feed

ADVANTAGES OF BOILERS WITH AUTOMATIC PELLET FEEDING WITH A TORCH-TYPE BURNER:

- Due to the low moisture content of pellets, pellet boilers are characterized by increased efficiency - up to 92%;

- The four-pass heat exchanger design, refractory brick lining of the furnace and excellent thermal insulation of the boiler are the key to efficiency. Thanks to this, the boiler consumes less fuel, which means lower operating costs;

- Fully automatic boiler operation;

- Automatic ignition and extinguishing of the burner;

- Simple operation;

- Possibility of modulation of burner power;

- Low electricity consumption;

Parameters Unit of measure KP 500 KW
Nominal boiler power kw 500
Approximate heating area m2  5000
Used fuel   Pellet, agropellet
Coefficient of efficiency (nominal), not less % 86
Heat exchange surface area m2 49,5
Hopper volume m3 1,5
  FIREPLACE PARAMETERS
 Depth mm  1400
 Width  mm 1370
 Volume dm3  2167
Boiler water capacity l 1600
Boiler weight without water Kg 4040
Required flue gas draft  40÷60
Flue gas temperature at the boiler outlet °C  100÷170
Recommended minimum water temperature °C  57
Maximum water temperature °C  90
Nominal working water pressure MPа  0,2
Maximum working water pressure, no more MPа  0,3
Electricity consumption, no more W  2х480
FIREPLACE DOOR DIMENSIONS
 Height  mm  600
Width mm 650
Diameter of the direct and return network water pipes (DN) mm 150
Diameter of the pipes under the safety valve (DN) mm 2х50
Connecting outer diameter of the drill bit mm 497
RECOMMENDED CHIMNEY PARAMETERS
Cross-sectional area cm2  1962
Inner diameter mm  500
Height (minimum permissible) mm  14÷16

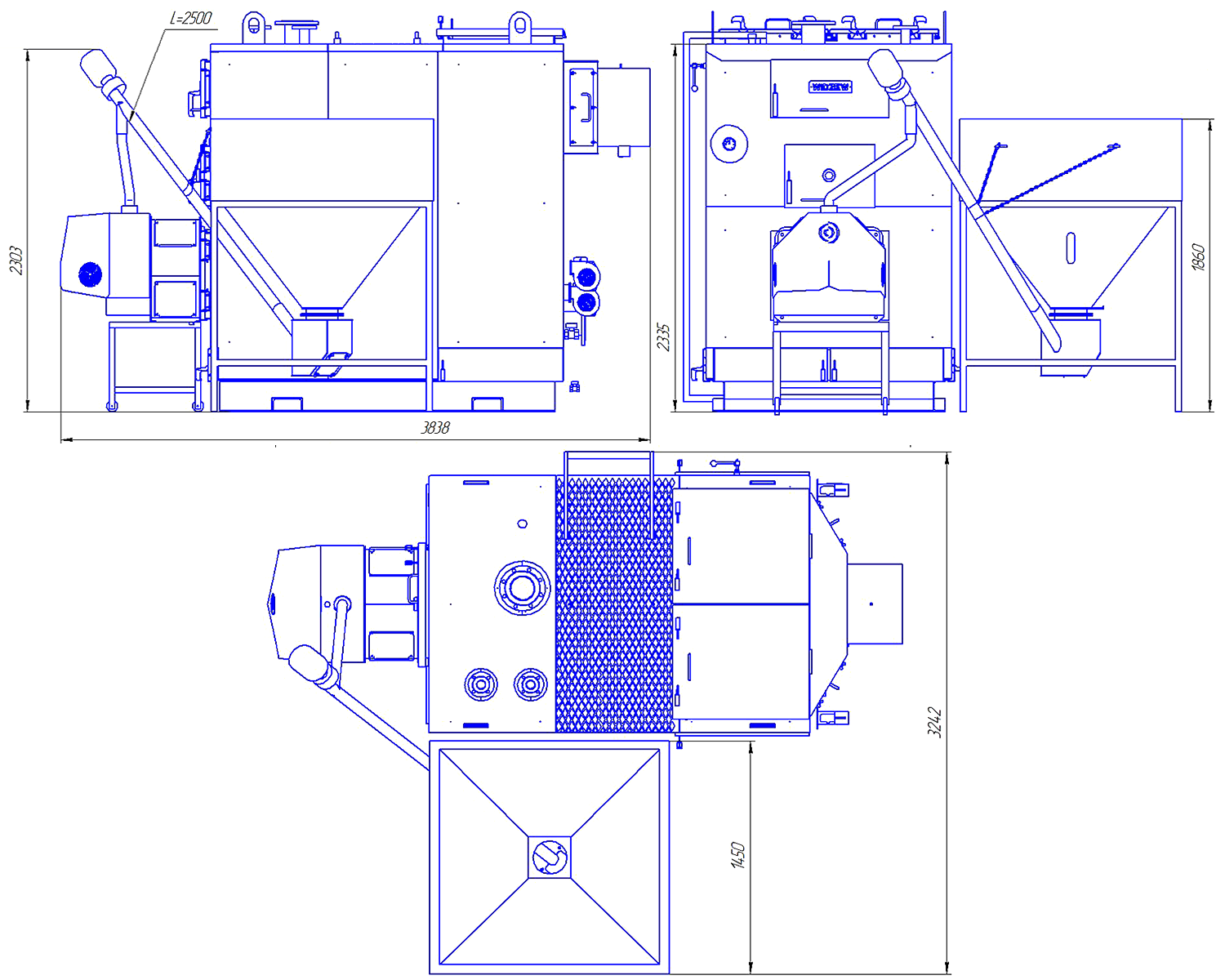

OVERALL DIMENSIONS OF THE KP 500 KW BOILER
