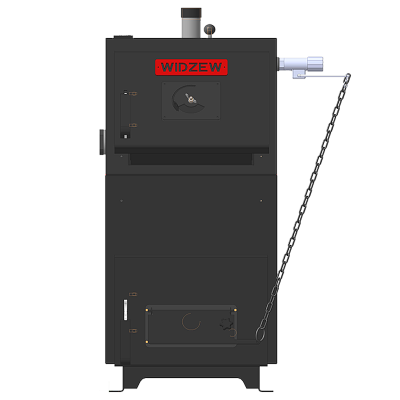

Solid fuel boilers of the 12-16 KV series

Name: Solid fuel boilers of the 12-16 KV series ≡ Widzew
Brand: Widzew
SKU: WD20-123
Price: 31000 UAH
Availability: InStock

Solid fuel boilers of long burning series "KV"

Are available

Ship today

Article: WD20-123

Heating Area: 120-160 m²

Mass: 198 kg.

Free shipping

We offer free delivery throughout Ukraine.

Price from the manufacturer

Widzew is a manufacturing plant in Ukraine.

Price: 31 000 грн

Any questions left?
Write to the manager

Specifications

Key Specifications: Solid fuel boilers of the 12-16 KV series

Parameters	Unit of measure	KV 12-16 KW
Boiler rated power	kw	12-16
Heat exchanger area	m²	1,8
Heating area	m²	120-160
Used fuel		wood, coal, briquettes
Coefficient of efficiency	%	82

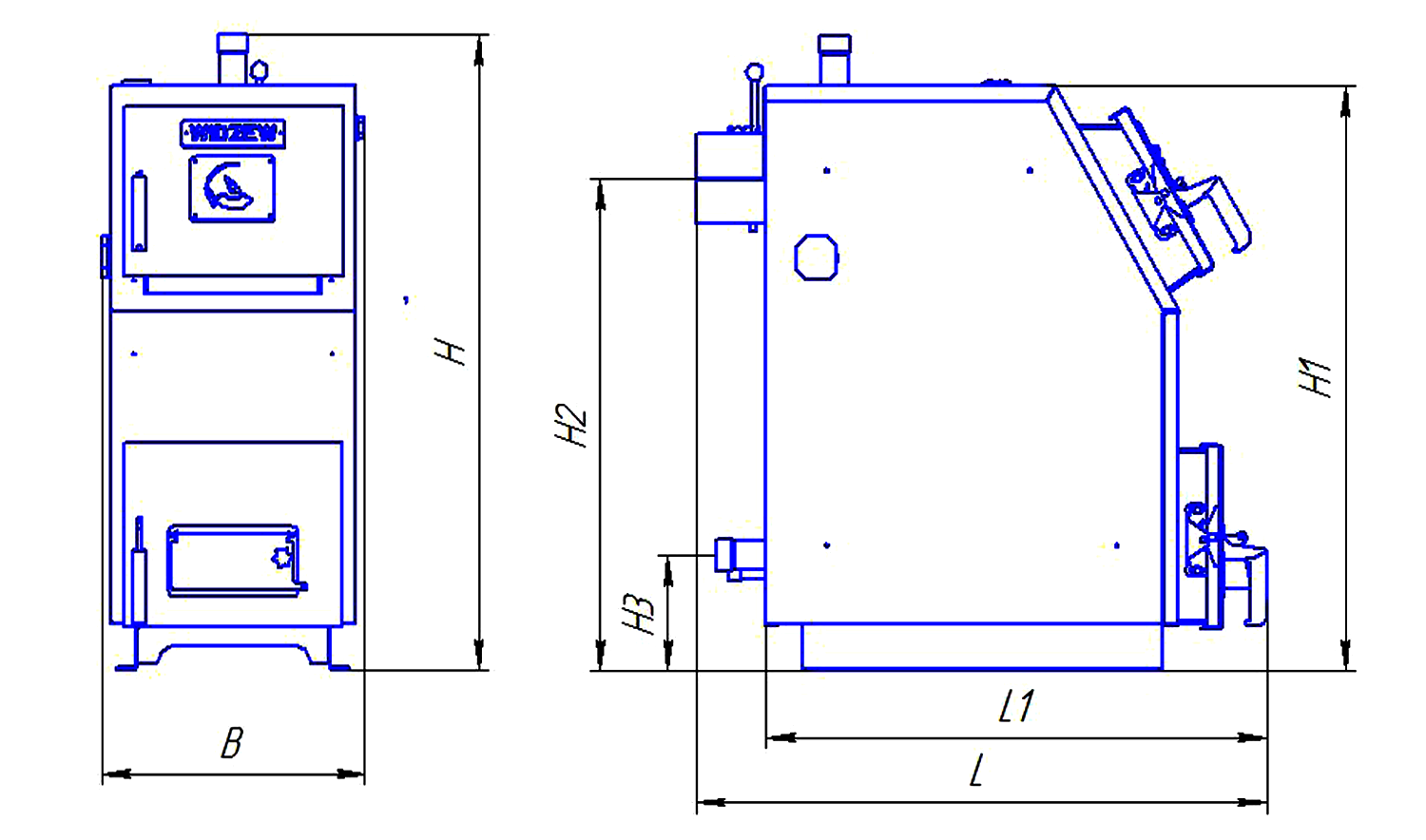

FIREPLACE DIMENSIONS
Height	mm	550
Width	mm	300
Depth	mm	573
Furnace volume	l	65
The length of the log	mm	460
Flue gas temperature at the boiler outlet	°C	180
Recommended minimum water temperature	°C	55
Maximum water temperature	°C	95
Nominal water pressure	MPа	2
Chimney connection dimensions	mm	150
Chimney height	m	6-7
Boiler water capacity	l	54
Boiler weight without water	Kg	198
FIREPLACE DOOR DIMENSIONS
Height	mm	260
Width	mm	300

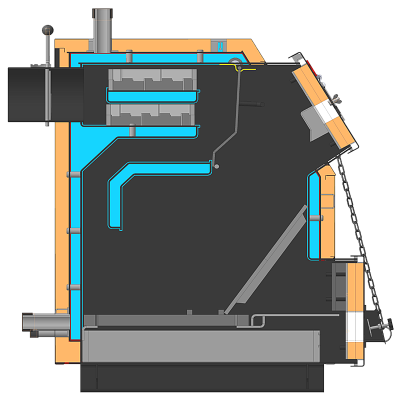

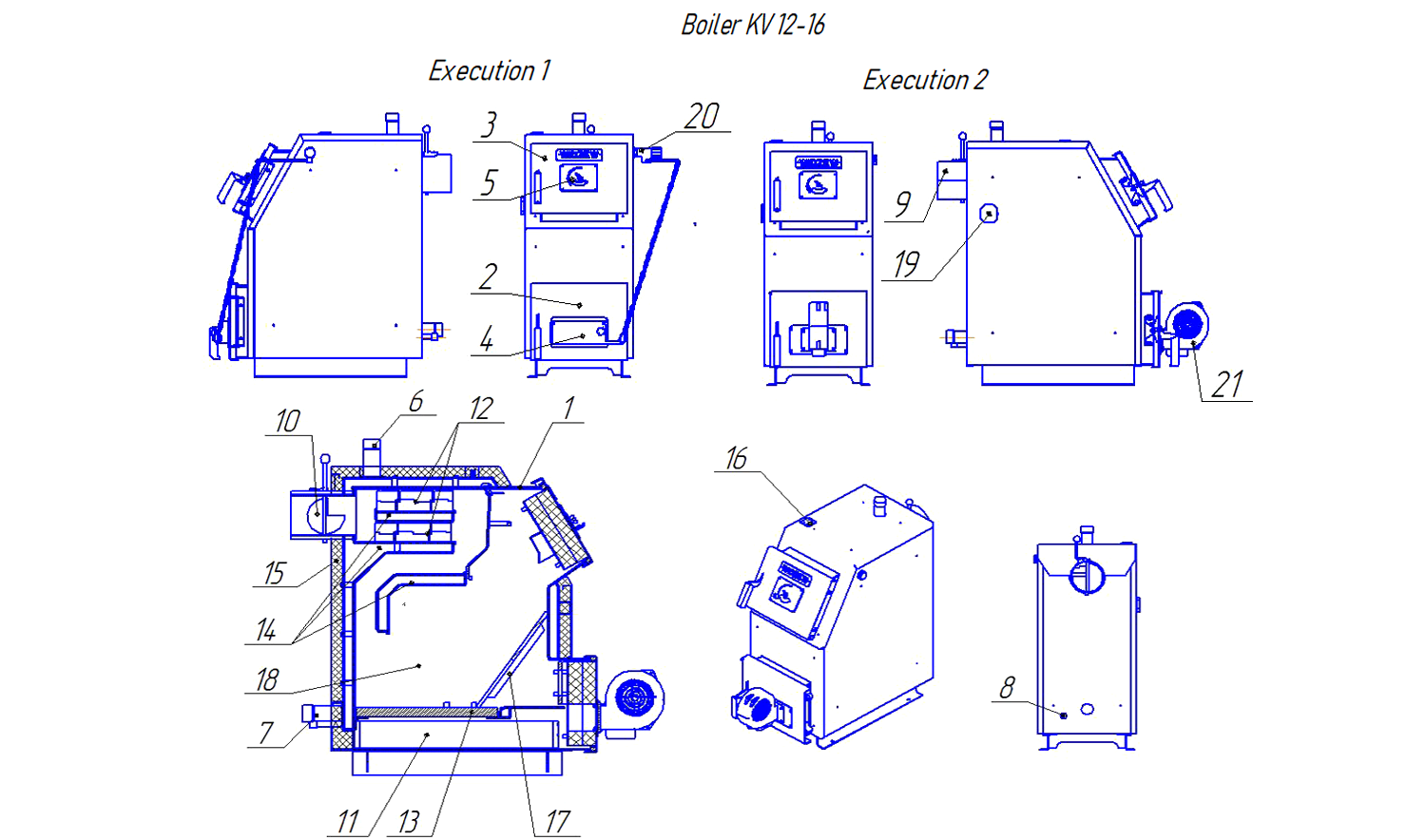

1. Boiler body	12. Turbulizers
2. Firebox and ash chamber door	13. Grill grate
3. Loading door	14. Plate heat exchangers
4. Primary air damper	15. Thermal insulation
5. Secondary air supply regulator	16. Thermometer
6. Heat carrier supply pipe	17. Mechanical boiler power regulator
7. Heat carrier circulation (return) pipe	18. Furnace
8. Coolant drain pipe	19. Place of installation of the heating element
9. Chimney pipe	20. Mechanical thermostat
10. Chimney damper	21. Fan
11. Ash tray
