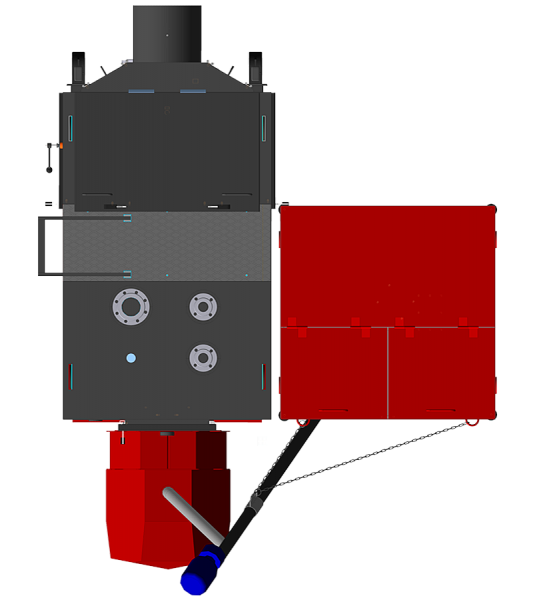

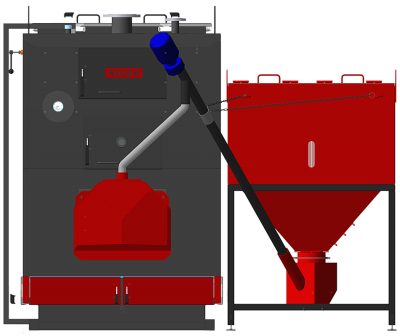

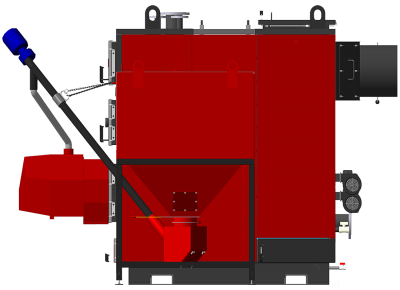

Industrial boiler KP 400 kW with automatic fuel feed

Industrial solid fuel boilers of the "KP" series with automatic fuel supply
Are available
Ship today
Article: WD20-130
Heating Area: 4000 m2
Mass: 3470 kg.
Free shipping
We offer free delivery throughout Ukraine.
Price from the manufacturer
Widzew is a manufacturing plant in Ukraine.
Price:

Specifications

Key Specifications: Industrial boiler KP 400 kW with automatic fuel feed

ADVANTAGES OF BOILERS WITH AUTOMATIC PELLET FEEDING WITH A TORCH-TYPE BURNER:

- Due to the low moisture content of pellets, pellet boilers are characterized by increased efficiency - up to 92%;

- The four-pass heat exchanger design, refractory brick lining of the furnace and excellent thermal insulation of the boiler are the key to efficiency. Thanks to this, the boiler consumes less fuel, which means lower operating costs;

- Fully automatic boiler operation;

- Automatic ignition and extinguishing of the burner;

- Simple operation;

- Possibility of modulation of burner power;

- Low electricity consumption;

Parameters Unit of measure KP 400 KW
Nominal boiler power kw 400
Approximate heating area m2  4000
Used fuel   Pellet, agropellet
Coefficient of efficiency (nominal), not less % 86
Heat exchange surface area m2 38,6
Hopper volume m3 1,5
  FIREPLACE PARAMETERS
 Depth mm  1200
 Width  mm 1250
 Volume dm3  1627
Boiler water capacity l 1300
Boiler weight without water Kg 3470
Required flue gas draft  40÷60
Flue gas temperature at the boiler outlet °C  100÷170
Recommended minimum water temperature °C  57
Maximum water temperature °C  90
Nominal working water pressure MPа  0,2
Maximum working water pressure, no more MPа  0,3
Electricity consumption, no more W  2х420
FIREPLACE DOOR DIMENSIONS
 Height  mm  520
Width mm 600
Diameter of the direct and return network water pipes (DN) mm 150
Diameter of the pipes under the safety valve (DN) mm 2х50
Connecting outer diameter of the drill bit mm 448
RECOMMENDED CHIMNEY PARAMETERS
Cross-sectional area cm2  1589
Inner diameter mm  450
Height (minimum permissible) mm  14÷16

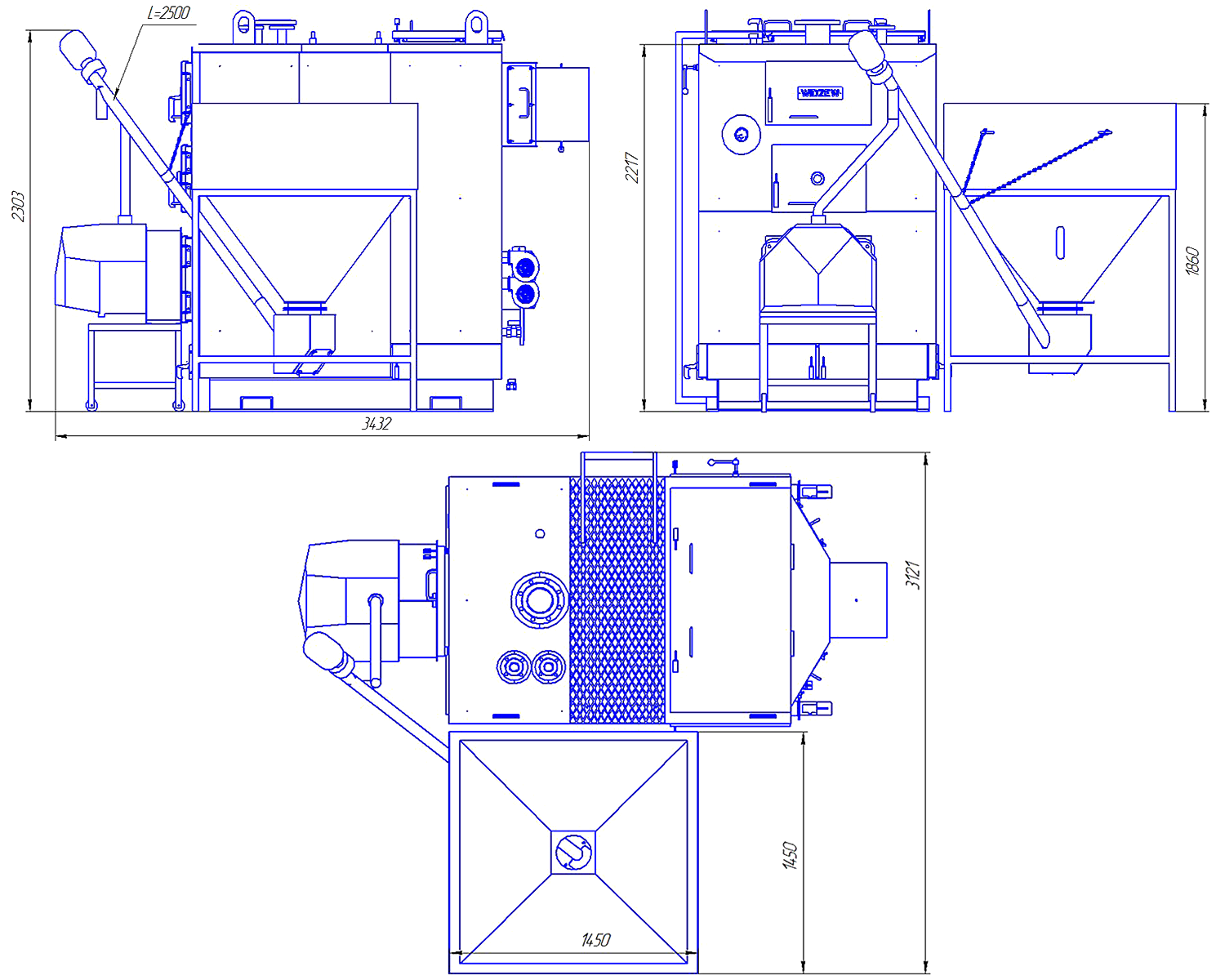

OVERALL DIMENSIONS OF THE KP 400 KW BOILER
