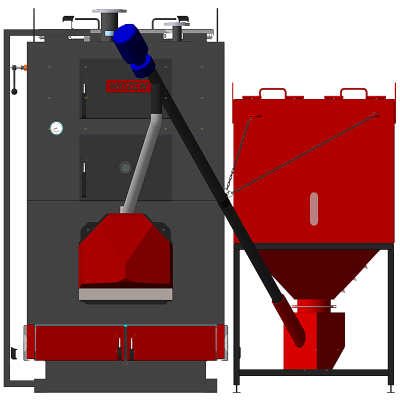

Industrial boiler KP 250 kW with automatic fuel feed

Industrial solid fuel boilers of the "KP" series with automatic fuel supply
Are available
Ship today
Article: WD20-128
Heating Area: 2500 m2
Mass: 2650 kg.
Free shipping
We offer free delivery throughout Ukraine.
Price from the manufacturer
Widzew is a manufacturing plant in Ukraine.
Price:

Specifications

Key Specifications: Industrial boiler KP 250 kW with automatic fuel feed

ADVANTAGES OF BOILERS WITH AUTOMATIC PELLET FEEDING WITH A TORCH-TYPE BURNER:

- Due to the low moisture content of pellets, pellet boilers are characterized by increased efficiency - up to 92%;

- The four-pass heat exchanger design, refractory brick lining of the furnace and excellent thermal insulation of the boiler are the key to efficiency. Thanks to this, the boiler consumes less fuel, which means lower operating costs;

- Fully automatic boiler operation;

- Automatic ignition and extinguishing of the burner;

- Simple operation;

- Possibility of modulation of burner power;

- Low electricity consumption;

Parameters Unit of measure KP 250 KW
Nominal boiler power kw 250
Approximate heating area m2  2500
Used fuel   Pellet, agropellet
Coefficient of efficiency (nominal), not less % 86
Heat exchange surface area m2 22,75
Hopper volume m3 1
  FIREPLACE PARAMETERS
 Depth mm  1100
 Width  mm 900
 Volume dm3  1020
Boiler water capacity l 743
Boiler weight without water Kg 2650
Required flue gas draft  20÷40
Flue gas temperature at the boiler outlet °C  100÷170
Recommended minimum water temperature °C  57
Maximum water temperature °C  90
Nominal working water pressure MPа  0,2
Maximum working water pressure, no more MPа  0,3
Electricity consumption, no more W  2х210
FIREPLACE DOOR DIMENSIONS
 Height  mm  440
Width mm 560
Diameter of the direct and return network water pipes (DN) mm 100
Diameter of the pipes under the safety valve (DN) mm 50
Connecting outer diameter of the drill bit mm 398
RECOMMENDED CHIMNEY PARAMETERS
Cross-sectional area cm2  1193
Inner diameter mm  400
Height (minimum permissible) mm  12÷13

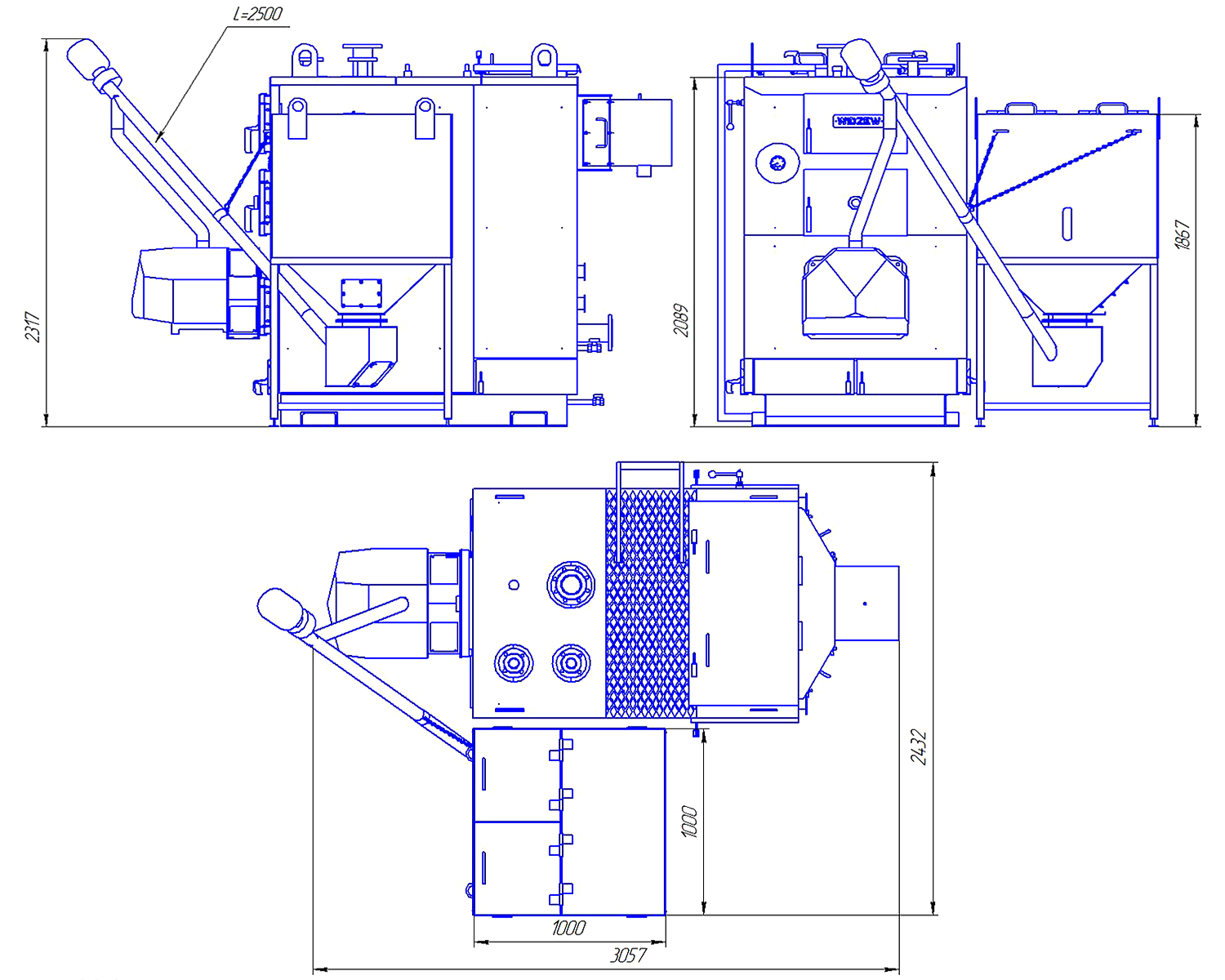

OVERALL DIMENSIONS OF THE KP 250 KW BOILER
