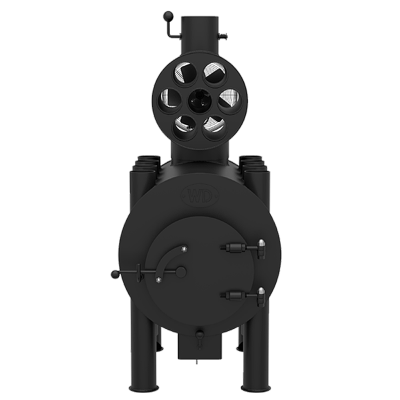

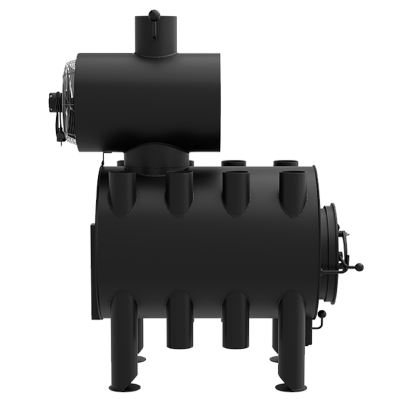

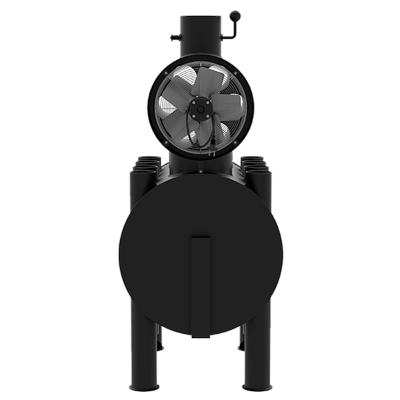

Buleryan "Turbo" with tubular heat exchanger type 01

Buleryans of the "Turbo" series with a tubular heat exchanger of various modifications
Are available
Ship today
Article: WD20-92
Heating Area - 20-100 m2
Pipe Diameter - mm
Number of pipes - pcs.
Mass - kg.
Price: 24500 uah
  • Share this:

Specifications

Key Specifications: Buleryan "Turbo" with tubular heat exchanger type 01
Depth, mm, not more than* 705
Width, mm, not more than* 450
Height, mm, not more than* 1055
Weight, kg
Nominal performance, kW 10
Heated Space, m3 **  50-250
Fuel consumption (firewood), kg/h  2,3
Efficiency (by nominal performance), %  85
Flue diameter, mm  120
Max. log length, mm  450
Heated air flow, m3/h 75-300
Constant temperature at the outlet of the heat exchanger, °C 100-500
Fan power, kW 10-36
Fuel used firewood/briquettes/
wood chips

* Overall sizes are approximate.

** Heated space is approximate it depends on many factors such as heat loss through protective structures, ceiling height, presence of ventilation, dampness of firewood etc.

Buleryan air wood-burning stoves with a heat exchanger and a fan are designed for heating residential, industrial and warehouse premises, the purpose of which is to increase thermal comfort.

In addition to radiant heat through its own surface and convection heating through the side pipes in the buleryan body, heat is transferred from the surface of the heat exchanger. The directional flow of heated air is due to the axial fan. Thus, the rapid distribution of heated air, uniform heating of the heated room is ensured. The use of a heat exchanger improves the efficiency of the furnace, increases its efficiency due to the additional transfer of heat from flue gases through the surface of the heat exchanger to the heated room and increases the heat output of the furnace. After passing through the heat exchanger, the flue gases are discharged through the chimneys into the environment.

Advantages of Buleryan "Turbo" furnaces with a heat exchanger:

- High efficiency, greater efficiency compared to conventional buleryans;

- Installed heat exchanger with fan;

- Two-chamber combustion system, like in classic buleryans;

- Long burning time on one bookmark 6-12 hours;

- Low wood consumption;

- Fast and uniform heating of the heated room;

All stoves are manufactured in accordance with the Technical Standard of Ukraine TU U 27.5-20866186-001:2015
