Buleryan industrial type 08
Specifications
Length, mm., no more * | 1365 |
Width, mm., no more * | 820 |
Height, mm., no more * | 1550 |
Weight, kg., no more * | 375 |
Pipe diameter, mm. | 89 |
Number of pipes, pcs. | 13 |
Maximum power, kW. | 80 |
Heating area, m 2 & nbsp; (ceilings 2.5m.) | 1000 |
Volume of the heated room, m 3 ** | 2500 |
Size of the firebox door, mm. | 300/480 |
Chimney diameter, mm. | 180 |
Length of logs, mm. | 1100 |
Fuel consumption per load, m 3 / l. | 0.075 |
* Overall dimensions are approximate
** The volume of the heated room is indicated for a guideline, and depends on many factors, such as heat losses through enclosing structures, ceiling heights, ventilation, moisture in firewood, etc.
The buleryan stove allows you to heat any residential and industrial premises. The Buleryan stove runs on solid fuels such as briquettes, firewood and wood waste, etc. At the first stage, the fuel smolders and emits furnace gases, and at the second stage, the complete afterburning of the released combustion products occurs. Thanks to this technology of fuel combustion on one full load, the furnace can work up to 8 hours!

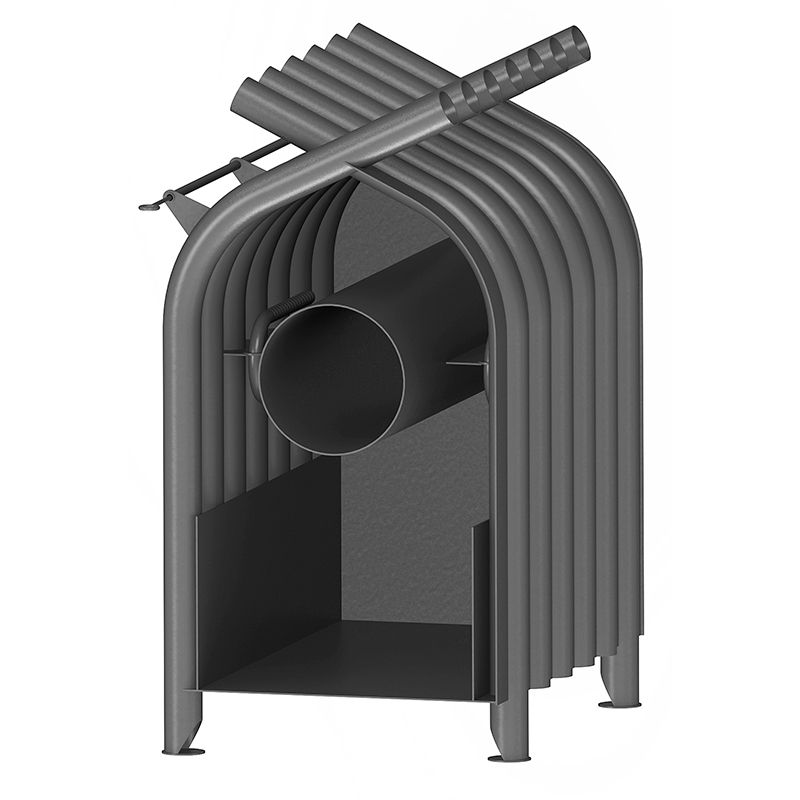

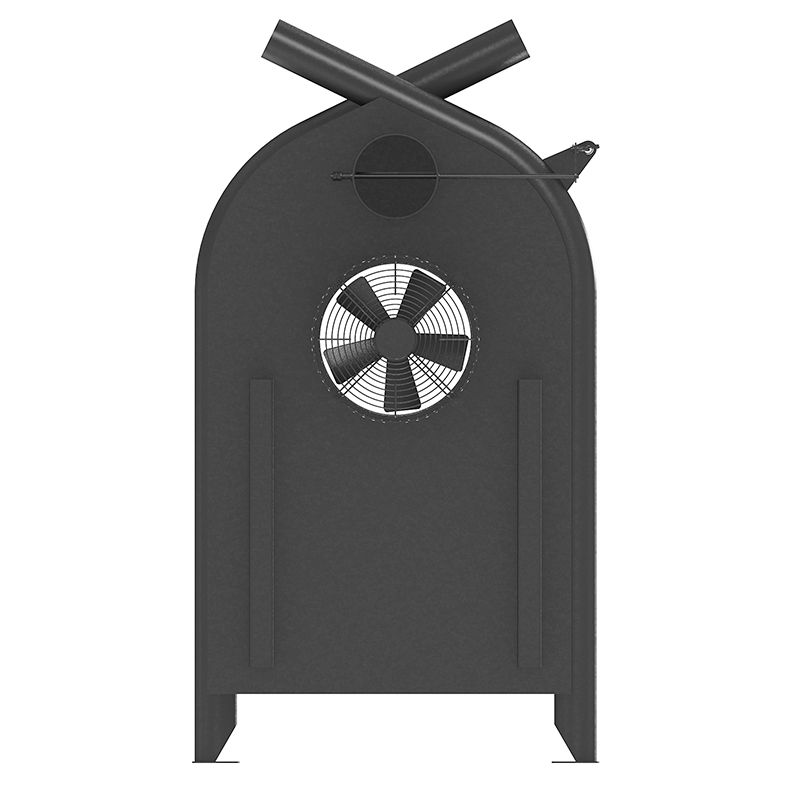

Buleryans of the "Industrial" series are intended for heating industrial, warehouse, household premises, large-scale greenhouses and are distinguished by a higher thermal power. As in "classic" buleryan, the firebox consists of two chambers: combustion and afterburner. In models type 06 and type 07, a heat exchanger is connected in series to Buleryan; in the model type 08, an additional heat exchanger in the form of a tube is structurally built into Buleryan, which can be used by installing a fan to blow hot air, faster and more uniform heating of the room.
Buleryan industrial type 06 is structurally different in that it is connected in series with a heat exchanger. Combustion products at the outlet of Buleryan have a temperature of 280-390 degrees Celsius. A more complete combustion occurs in the heat exchanger, additional heat power is generated, and the efficiency increases to 85%, that is, to heat the same volume of the room, this type of buleryan will consume less firewood.
All furnaces are manufactured in accordance with TU U 27.5-20866186-001: 2015
All stoves of the Buleryan type and long-burning stoves are equipped with a patented flue gas afterburning system, which makes it possible to increase the heat output up to 20% with the same firewood consumption as compared to Buleryan stoves with a conventional secondary air supply.
All buleryans (ovens) can be additionally equipped with:
- stands;
- heat exchangers - the use of a heat exchanger will increase the heat output of the furnace, increase the efficiency and actually reduce the consumption of firewood;
- side panels;
- heat plates.
